Creating a solar heater from soda cans is an innovative way to harness renewable energy for heating purposes. This DIY project involves building a passive solar air heater using recycled aluminum cans as the primary material. The following guide is based on a synthesis of various sources, ensuring that the information is comprehensive and useful for anyone interested in building their own soda can solar heater.

Step-by-step guide to making a solar heater for soda cans

1.  Collection of Materials

• Aluminum Cans  – Start by collecting aluminum cans, such as soda cans, beer cans, and sparkling water cans. You will need a significant amount of these cans, so start collecting them early.

2.  Gather additional supplies

• High Temperature Black Spray Paint  – For painting the cans, which helps absorb heat.
• High Temperature Putty/Glue  : To secure cans together.
• Wood  : Includes 1×4 and a piece of 1/4″ thick plywood for the back.
• Insulation  : Foam board insulation or similar material.
• Glass panel  : A panel of glass, plexiglass, or tempered glass.
• Drill and Wood Screws  : For assembling the structure.

3.  Preparing Cans

• Drilling Holes  : Carefully drill three holes in the bottom of each can. These holes allow air to pass through the cans. Make sure all cans are clean and dry before drilling.

4.  Mounting the heater

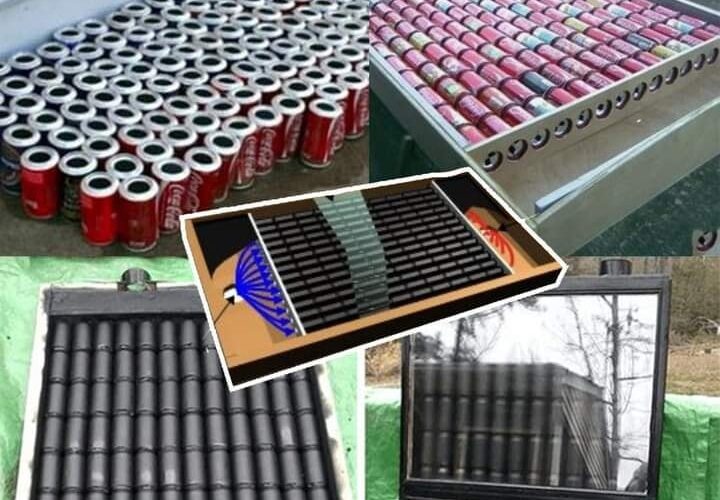

• Building the box  : Build a box out of wood and plywood to house the cans. The size of the box is determined by the number of cans and the size of the glass pane.
• Can Stacking  : Stack perforated cans on top of each other, securing them with putty or high-temperature glue.
• Insulate the box  : Cover the back and sides of the box with foam insulation. Caulk all edges to ensure it is airtight. Once dry, paint the insulation with high-temperature flat black spray paint.
• Securing the glass panel  : Place the glass panel on top of the box, ensuring a good seal to keep the unit airtight.

5.  Operation and Testing

• Solar Heating  : Place the heater in a sunlit area. The black cans inside the box will absorb the sun’s heat, warming the air inside the cans. The holes in the cans create a turbine effect, spinning the air and increasing heat absorption.
• Temperature Monitoring  : You can measure the temperature inside the box with a thermometer. It is expected that even on a cool day, the temperature inside the box can reach up to 160 degrees Fahrenheit.
• Orientation and Tilt  : Make sure the box is slightly tilted and facing the sun for optimal performance.

Tips and considerations

• Design Variations  – There are several designs and methods for building a soda can solar heater. Some designs are simple, suitable for a quick do-it-yourself project, while others are more complex and may offer greater efficiency.
• Material quality  – Using materials with efficient thermal performance can significantly improve the effectiveness of the heater. Commercially produced versions, such as Cansolair panels, use high-quality materials, but similar results can be achieved with carefully selected DIY materials.
• Passive Solar Heating  : This method is considered one of the most cost-effective renewable energies. It uses the sun’s energy by capturing it with an absorbent medium, in this case, painted aluminum cans.

Building a solar heater from soda cans is a doable and environmentally friendly project. By following these steps and using readily available materials, you can create an efficient heating source that harnesses solar energy. This project not only recycles materials but also provides a practical application of renewable energy principles. Remember to consider the specific requirements of your location, such as sun exposure and climate, to optimize the performance of your solar heater.
